Product Description

Product Parameters
Server Model Dell EMC PowerEdge R760XD2
Features Technical Specifications
Processor Up to two 4th Generation Intel Xeon Scalable processor with up to 56 cores per processor and with optional Intel® QuickAssist Technology
RAM Up to 16 DDR5 RDIMMs (up to 1TB supported) NVDIMM No DIMM Speed: up to 4800 MT/S
Storage controllers
  • Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
  • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB
  • External HBA (non-RAID): HBA355e
  • Software RAID: S160
Drive Bays Front bays:
  • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB
  • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
  • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB
  • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB
Rear bays:
  • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
  • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
Power supplies
  • 2800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
  • 2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
  • 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
  • 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
  • 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant
  • 1100 W LVDC -48 — -60 VDC, hot swap redundant
  • 800 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
  • 700 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
Size
  • Height – 86.8 mm (3.41 inches)
  • Width – 482 mm (18.97 inches)
  • Depth – 772.13 mm (30.39 inches) with bezel, 758.29 mm (29.85 inches) without bezel
Fans
  • Standard (STD) fans / High performance Silver (HPR) fans / High performance Gold (VHP) fans
  • Up to 6 hot plug fans
Outline specification 2U rack server
Embedded management iDRAC9
  • iDRAC Direct
  • iDRAC RESTful API with Redfish
  • iDRAC Service Module
  • Quick Sync 2 wireless module
Embedded NIC 2 x 1 GbE LOM
GPU options Up to 2 x 350 W DW and 6 x 75 W SW
Port Front Ports:
  • 1 x iDRAC Direct (Micro-AB USB) port
  • 1 x USB 2.0
  • 1 x VGA

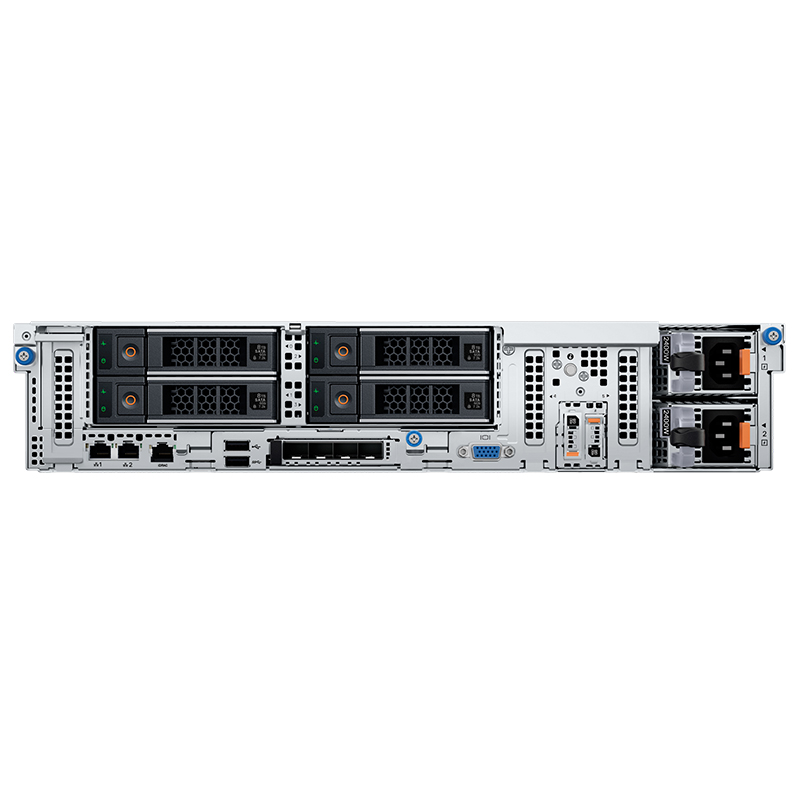

Rear Ports:
  • 1 x Dedicated iDRAC Ethernet port
  • 1 x USB 2.0
  • 1 x USB 3.0
  • 1 x VGA
  • 1 x Serial (optional)
  • 1 x VGA (optional for Direct Liquid Cooling configuration)
PCIe Up to eight PCIe slots:
  • Slot 1: 1 x8 Gen5 or 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length
  • Slot 2: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length or 1 x16 Gen5 Full height, Full length
  • Slot 3: 1 x16 Gen4 Low profile, Half length
  • Slot 4: 1 x8 Gen4 Full height, Half length
  • Slot 5: 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length
  • Slot 6: 1 x16 Gen4 Low profile, Half length
  • Slot 7: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length
  • Slot 7 SNAPI: 1 x16 Gen5 Full height, Half length
  • Slot 8: 1 x8 Gen5 or 1 x8 Gen4 Full height, Half length
Operating system and hypervisor
  • Canonical Ubuntu Server LTS
  • Microsoft Windows Server with Hyper-V
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise Server
  • VMware ESXi
For specifications and interoperability details, see Dell.com/OSsupport.
Warranty 3 years
Products Description

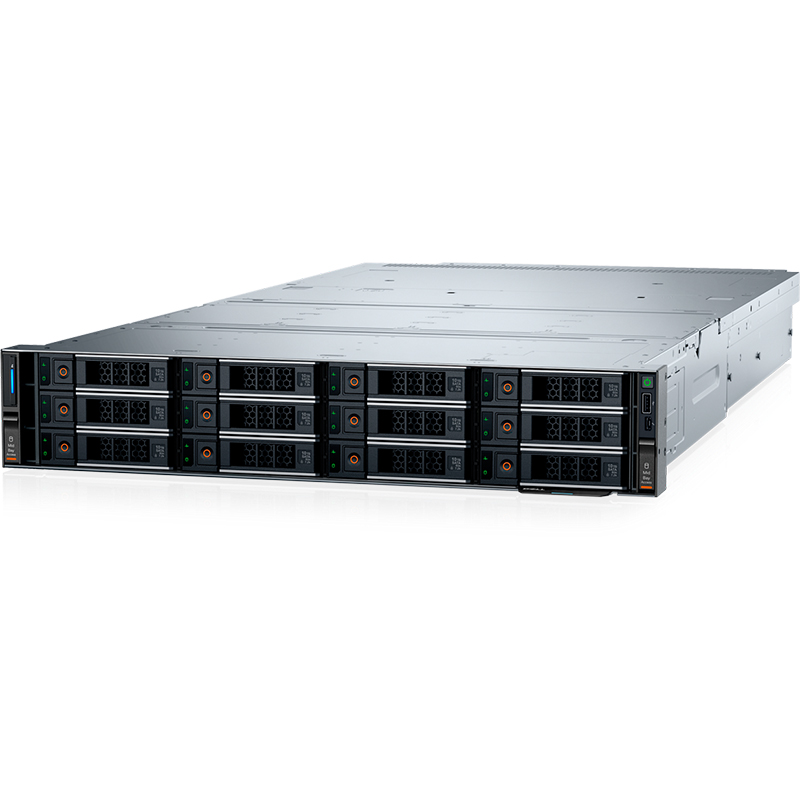

Dell PowerEdge R760xd2
Dell PowerEdge R760xd2
Meet your growing unstructured data needs with object storage technology designed to be easily configurable, serviceable, and scalable. This 2U, 2 socket server is ideal for file and object storage, video capture/retrieval, and content delivery networks.
Product Display

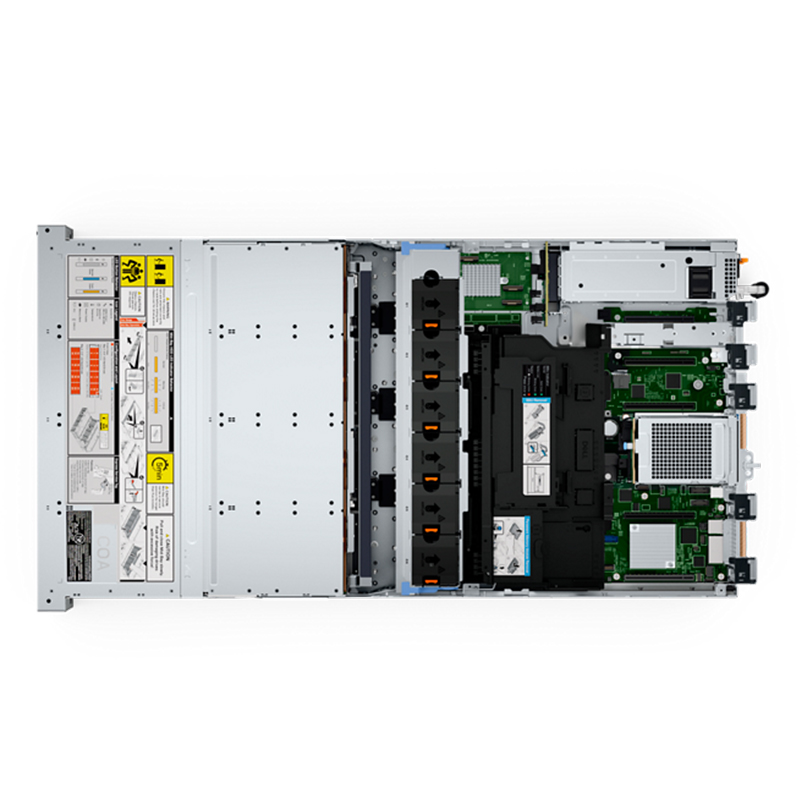

Product Image 1
Product Image 2
Product Image 3
Product Image 4
Product Image 5
Product Image 6
Product Image 7
Application Scenario
Application Scenario
Profile
Profile Image
As a leading integrated IT solutions provider, we combine cutting edge in house manufacturing, dedicated R&D facilities, and a robust global distribution network to deliver comprehensive end to end infrastructure services. With a team of over 300 highly skilled professionals, including more than 150 certified engineers holding top tier certifications, we bring 15 years of proven expertise in designing, deploying, and maintaining mission-critical IT environments for enterprises worldwide. Our vertically integrated approach ensures seamless quality control from component sourcing to final implementation. As authorized partners for Huawei, xFusion, Dell, HPE, and Lenovo, we provide:
  • Computing servers
  • Network storage
  • Network switches
  • CPU, RAM, HARD DRIVES, and other accessories
Exhibition
Exhibition
Packing & Delivery
Packaging Box
Shipping Logistics
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
When can I get the quotation?
We usually quote within 24 hours after receiving your inquiry. If you are in a hurry, please inform us by email or telephone so we can prioritize your request.
What warranty support do you provide for hardware?
Our complete machine products provide a 3-year replacement warranty. We maintain a complete supply chain to efficiently address and resolve any after-sales problems.
How do you ensure the quality of memory and other components?
All memory components utilize original brand chips, and we strictly test all parts and memory modules before each delivery to ensure the highest standards. We have also successfully passed the SGS annual audit and Alibaba's financial inspection.
What payment methods do you accept?
We accept Alipay, credit cards, bank card transfers, T/T, and other secure payment methods to eliminate payment security concerns.
What is the minimum order quantity for an OEM order?
Different products have different MOQs. Let us know your requirements and we will try our best to accommodate your needs. Small orders are also popular and welcome.
Why is your pricing similar to the local market rate? How does it differ?
We have been specialized in this line for many years. We focus on quality and believe that only premium quality supports long-term business. Although products may appear identical from the outside, they often have internal differences that determine different performance and price levels.
